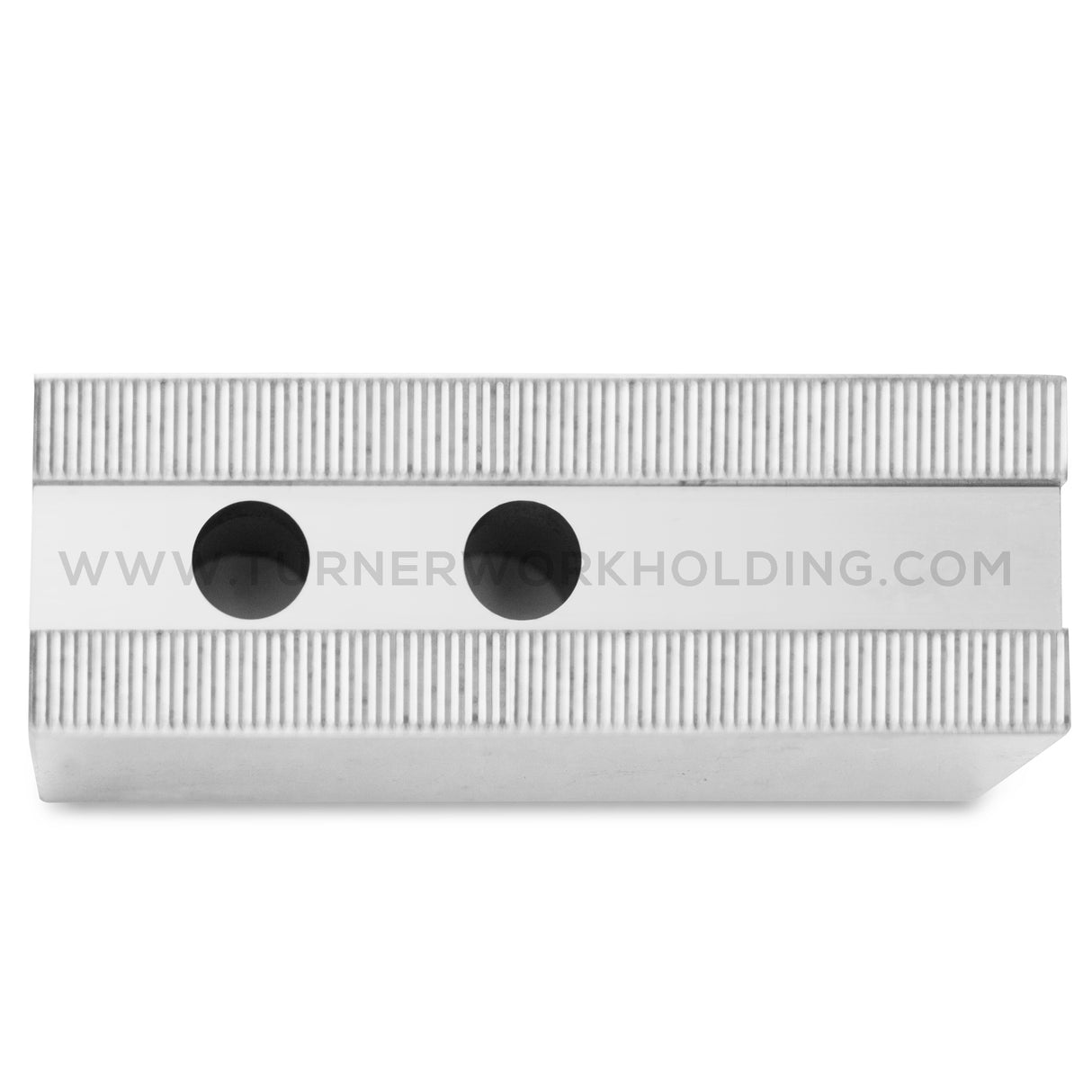

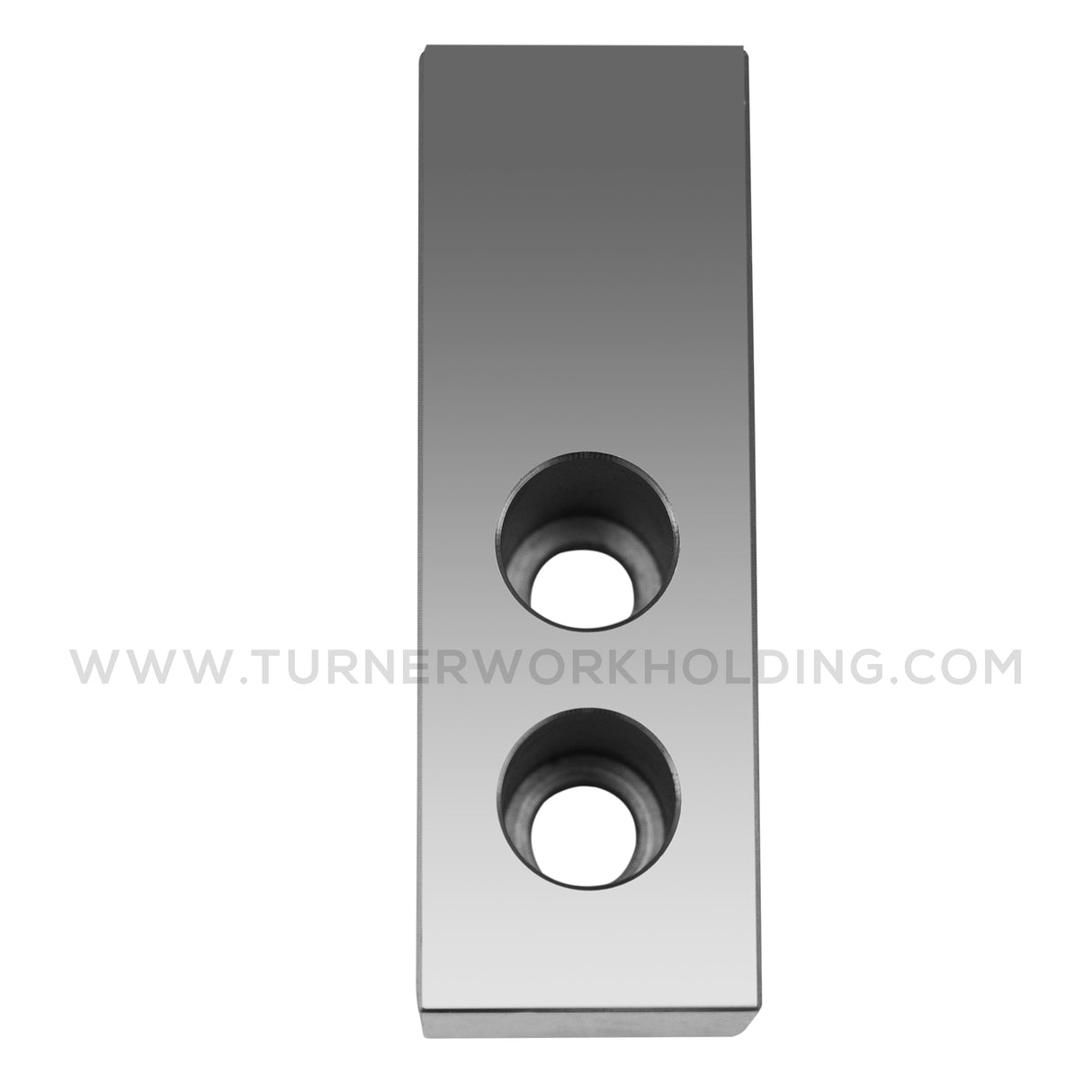

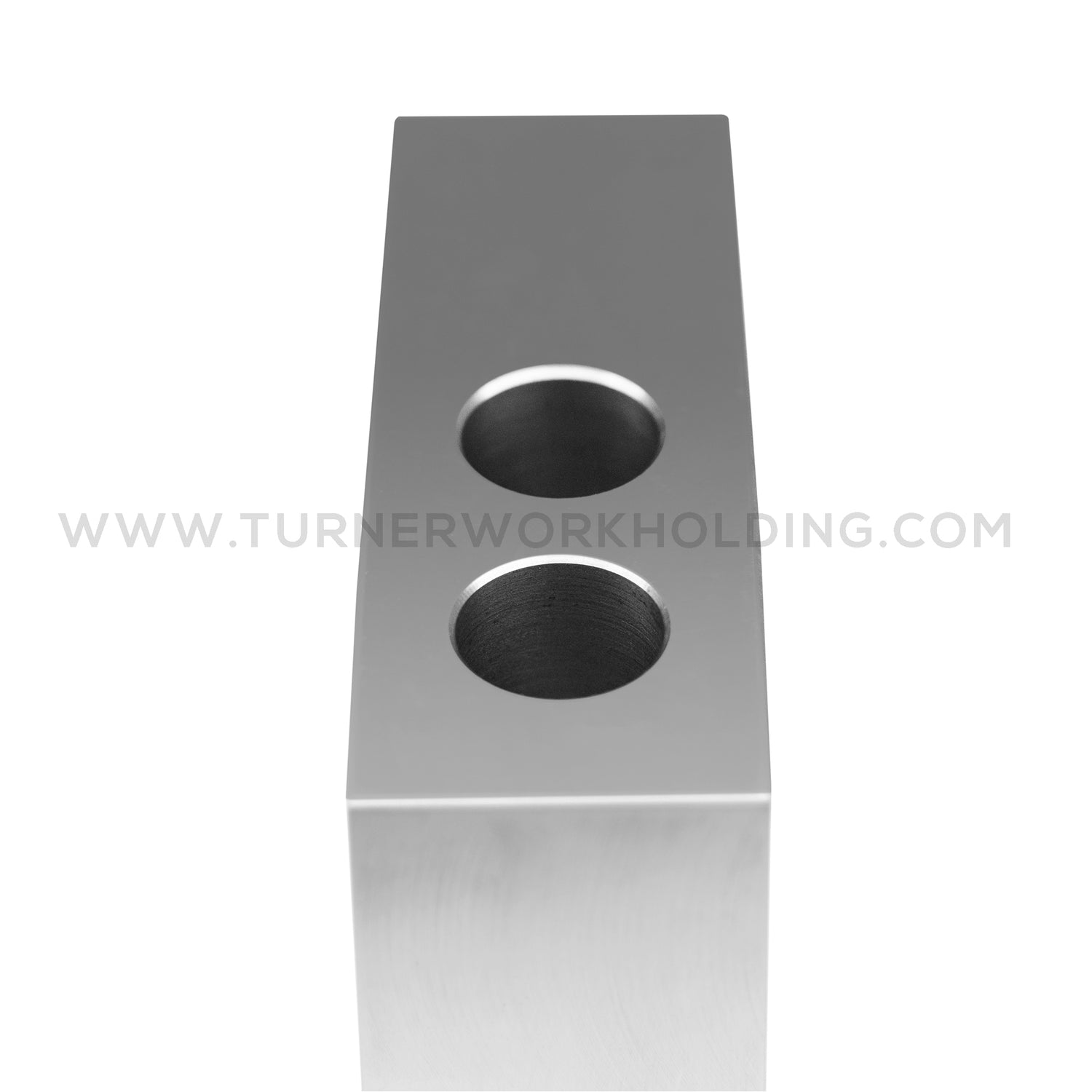

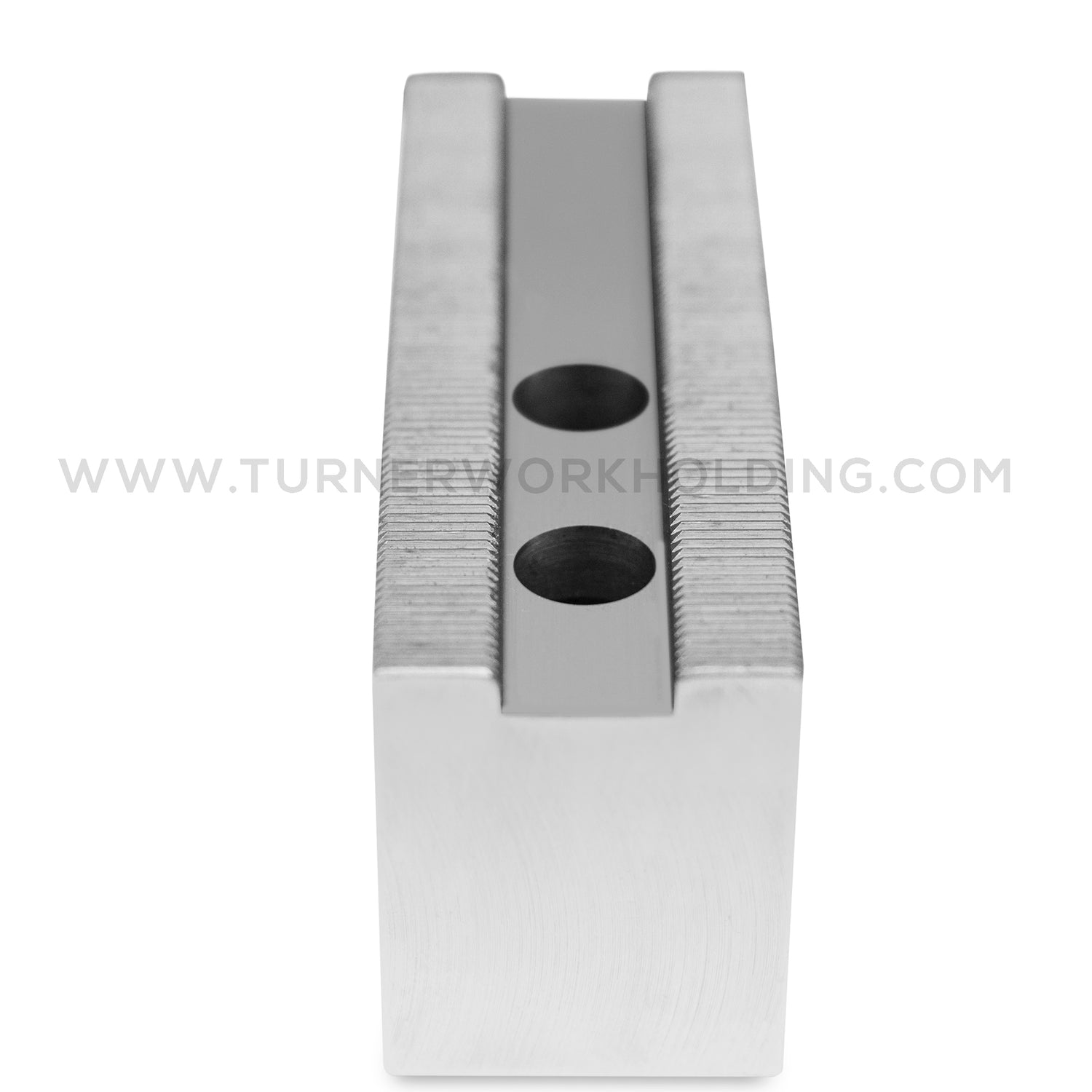

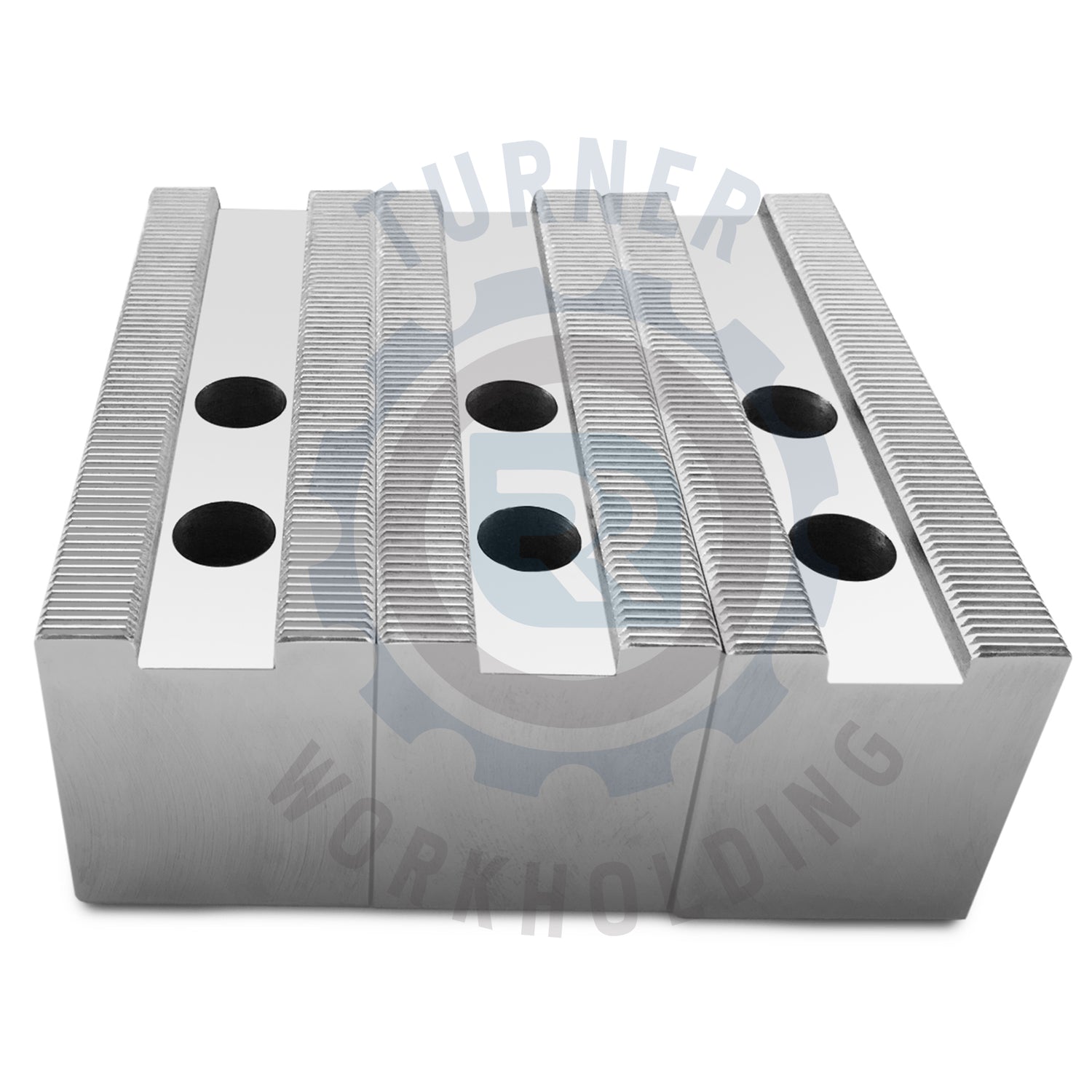

K-15C-2.50-SF - 15" Lathe Chuck Serrated Steel Soft Jaws Set (3 Pcs), Flat, 2.5" Height, for Kitagawa (B-15), Samchully Power Chucks
K-15C-2.50-SF - 15" Lathe Chuck Serrated Steel Soft Jaws Set (3 Pcs), Flat, 2.5" Height, for Kitagawa (B-15), Samchully Power Chucks is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping and Delivery
Shipping and Delivery
Free shipping to the 48 continental United States on all products. Outside the USA, please see shopping cart for shipping rates.
Order by 12:00pm EST for same day shipment on most products.
Free returns for 30 days
Free returns for 30 days
No questions asked - shop with confidence!
K-15C-2.50-SF - 15" Lathe Chuck Serrated Steel Soft Jaws Set (...
Quality Manufacturing
All Turner Workholding products are proudly made in an ISO-9001 certified plant.
Description
Description
Part Number - K-15C-2.5-SF
Material- Steel
Type -Flat End
Serrations - 1.5 MM x 60
Size- 15" Chuck Type- Kitagawa (B-15), Samchully, Howa, Matsumoto, Sugo, Nikko
Chuck Dia Inch -15"
Bolt Size - 20MM
Length (A) - 6.50"
Width (B) - 2.50"
Height (C) - 2.50"
Groove Width (D) -0.866"
Groove Depth (E) - 0.312"
Counter Hole Depth (F) - 1.625"
Small Hole Ø (G) - 0.826"
Big Hole Ø (H) - 1.259"
Hole to Front (K) - 2.75"
Center to Centre (M) - 2.360"
