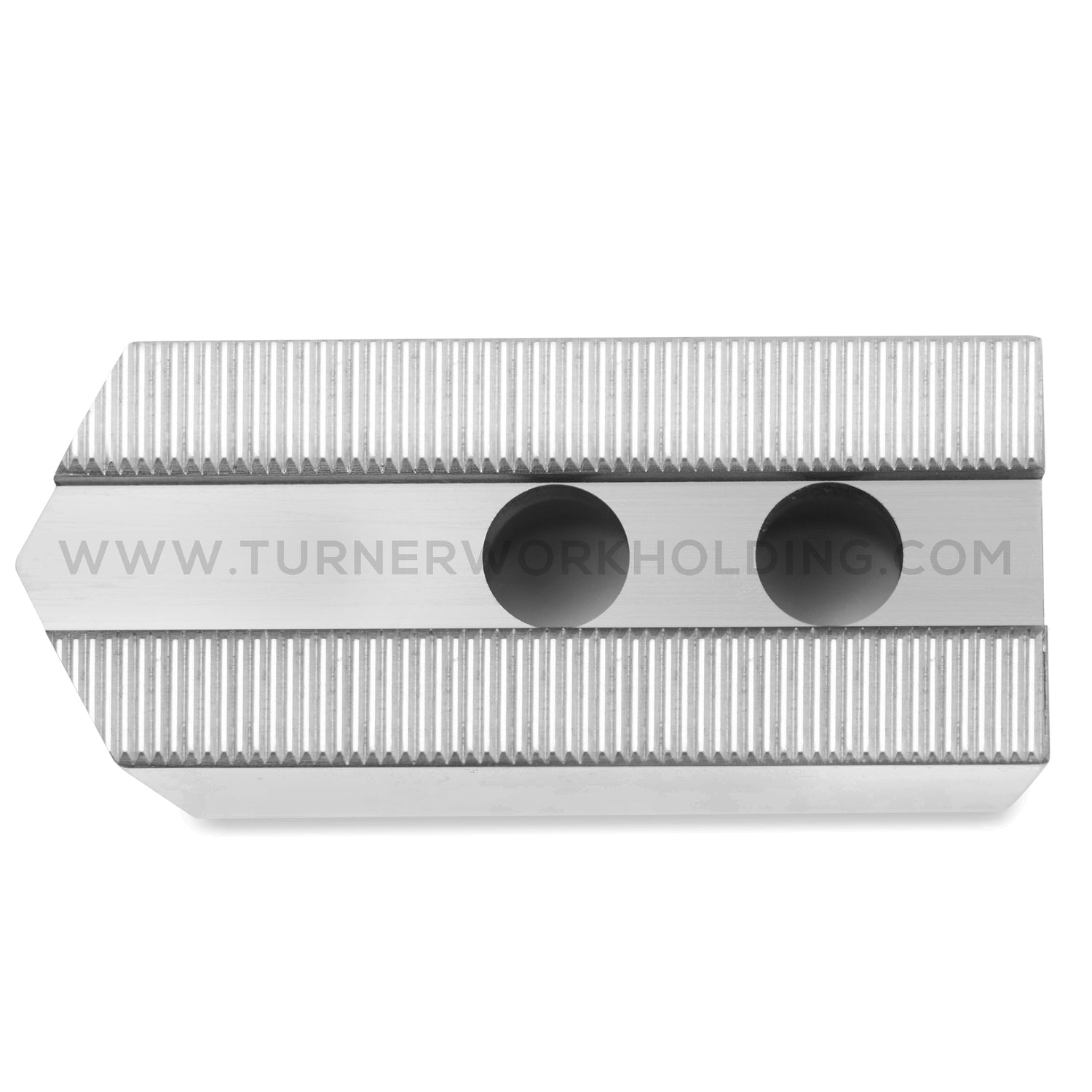

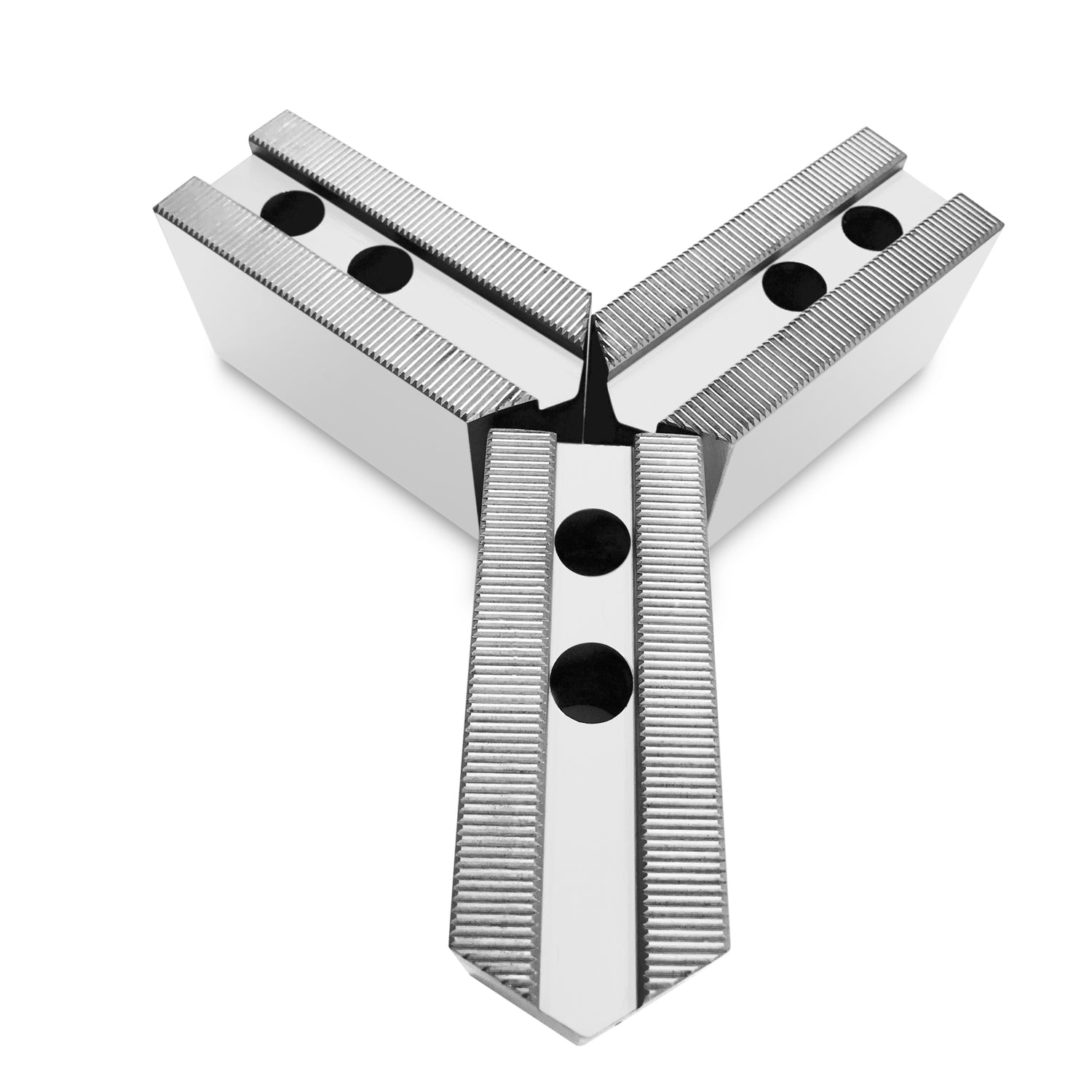

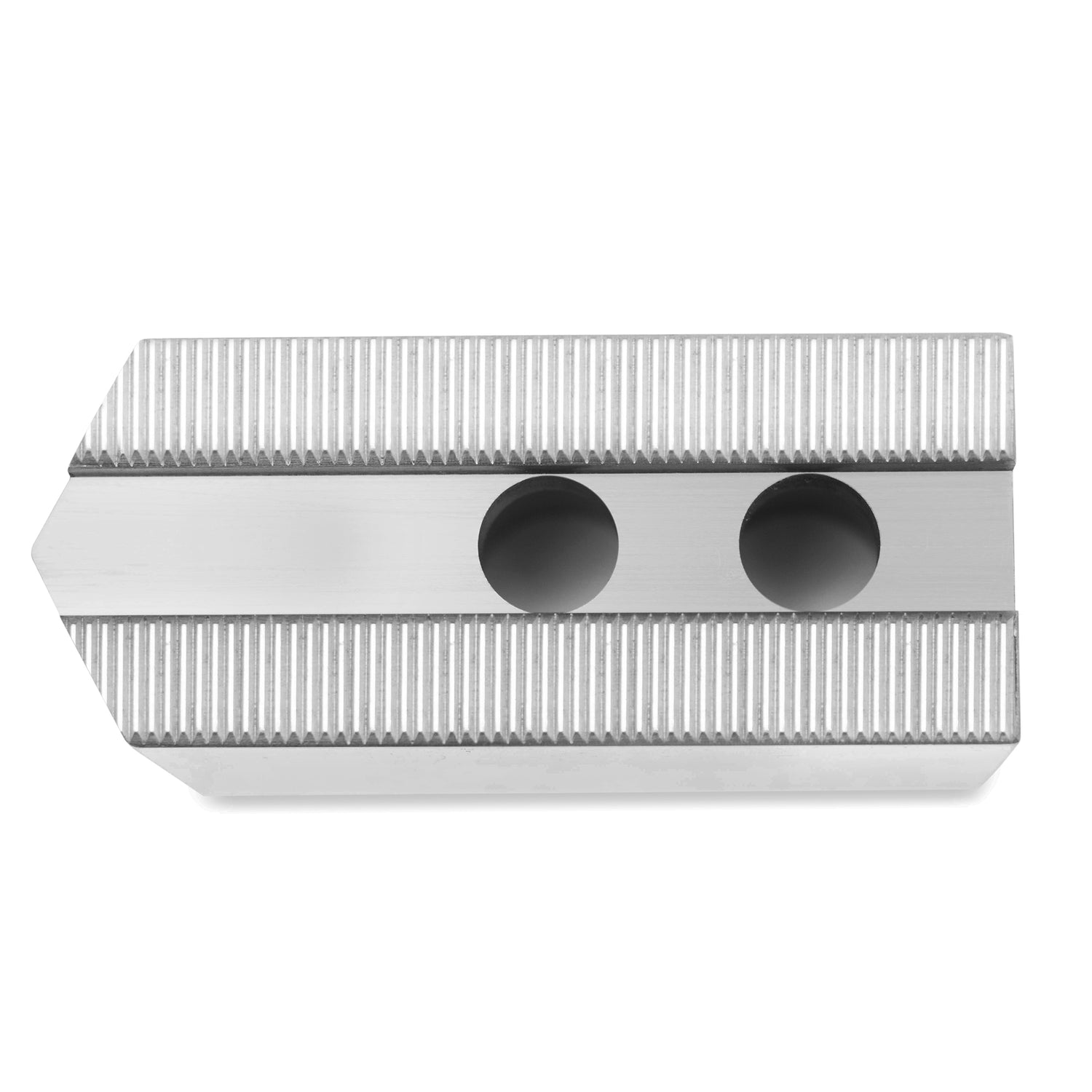

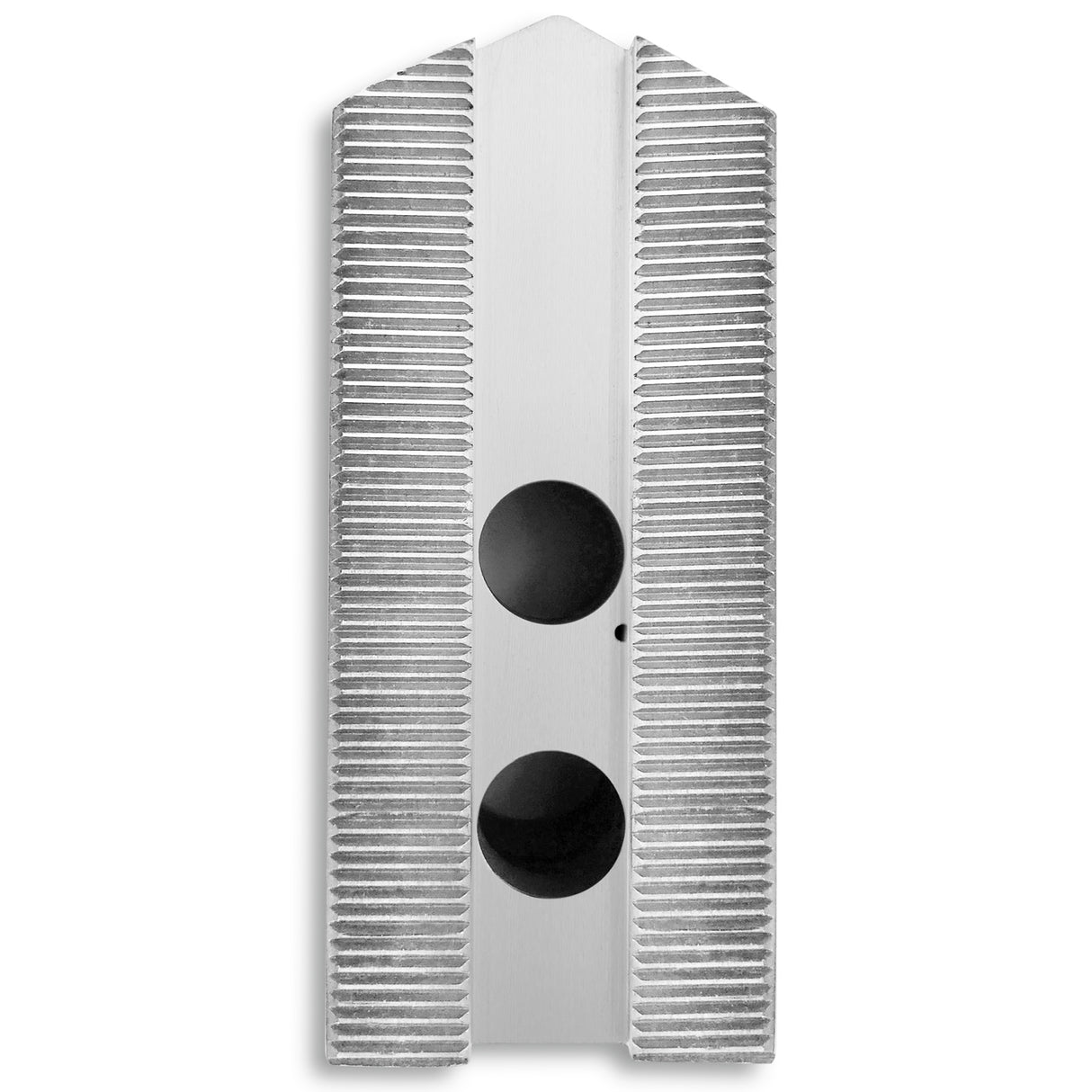

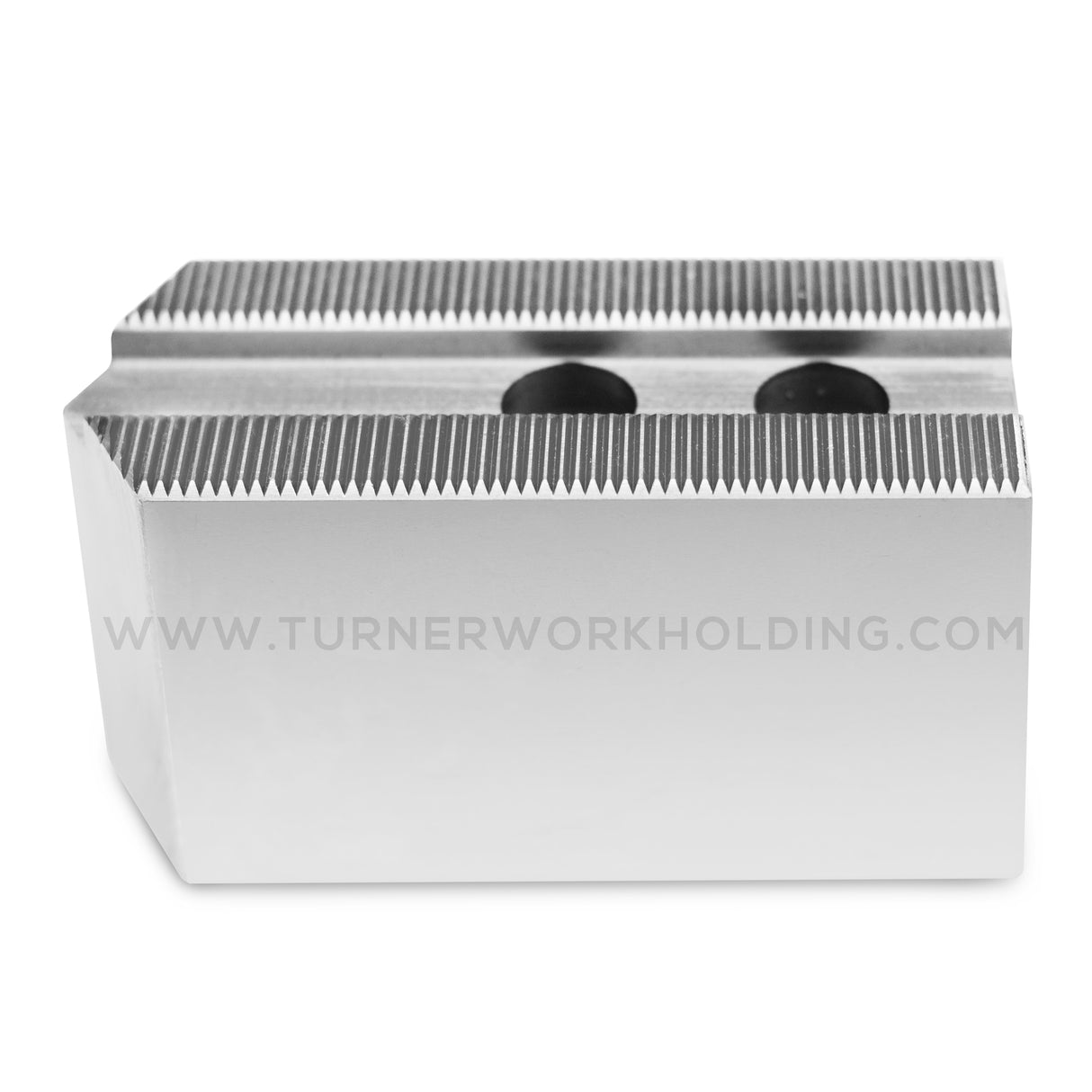

K-10C-3.0-SP - 10" Lathe Chuck Serrated Steel Soft Jaws Set (3 Pcs), Pointed, 3" Height, for Kitagawa (B-210), Samchully Power Chucks

• ✔️High Quality Steel Serrated Soft Jaws for Precision Performance
• ✔️ Suitable for Kitagawa, Samchully, MMK, Auto Strong, & Howa Chucks
• ✔️ 1 Set - 3 Pcs, Pointed, 3” height, 4.5” length
• ✔️ 30 Day Warranty – If you don’t like it, we will take it back, no questions asked!
• ✔️ Manufactured in an ISO-9001 certified facility

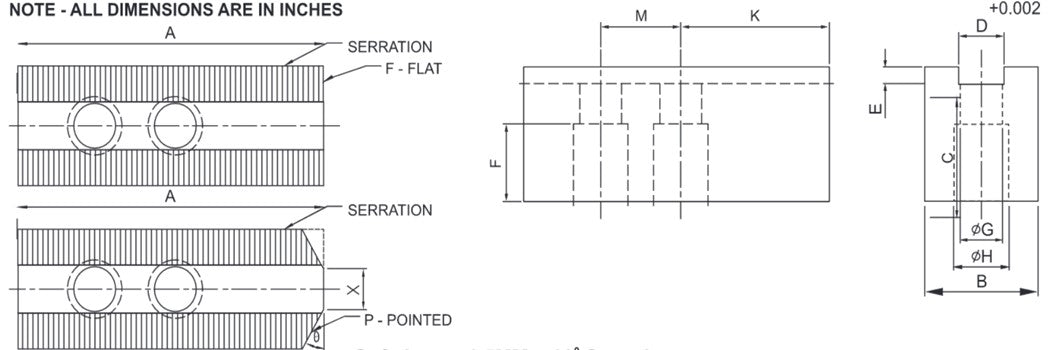

Please see images for Dimensions Template:

• Material- Mild Steel (C-1018)
• Serration – 1.5 mm x 60
• Type - Pointed
• Qty - 1 Set (3 Jaws)
• Chuck Size/Diameter- 10" (B-210 for Kitagawa)
• Chuck Type- Kitagawa, Samchully, Howa, Matsumoto, Sugo, Nikko
• Bolt Size – 12 MM
• Length (A) – 4.5”
• Width (B) – 1.50”
• Height ( C ) – 3.00”
• Groove Width (D) – 0.630”
• Groove Depth ( E ) – 0.196”
• Counter Hole Depth (F) – 2.375”
• Small Hole Ø (G) – 0.511”
• Big Hole Ø (H) – 0.748”
• Hole to Front (K) – 2.375”
• Center to Center (M) – 1.181”
