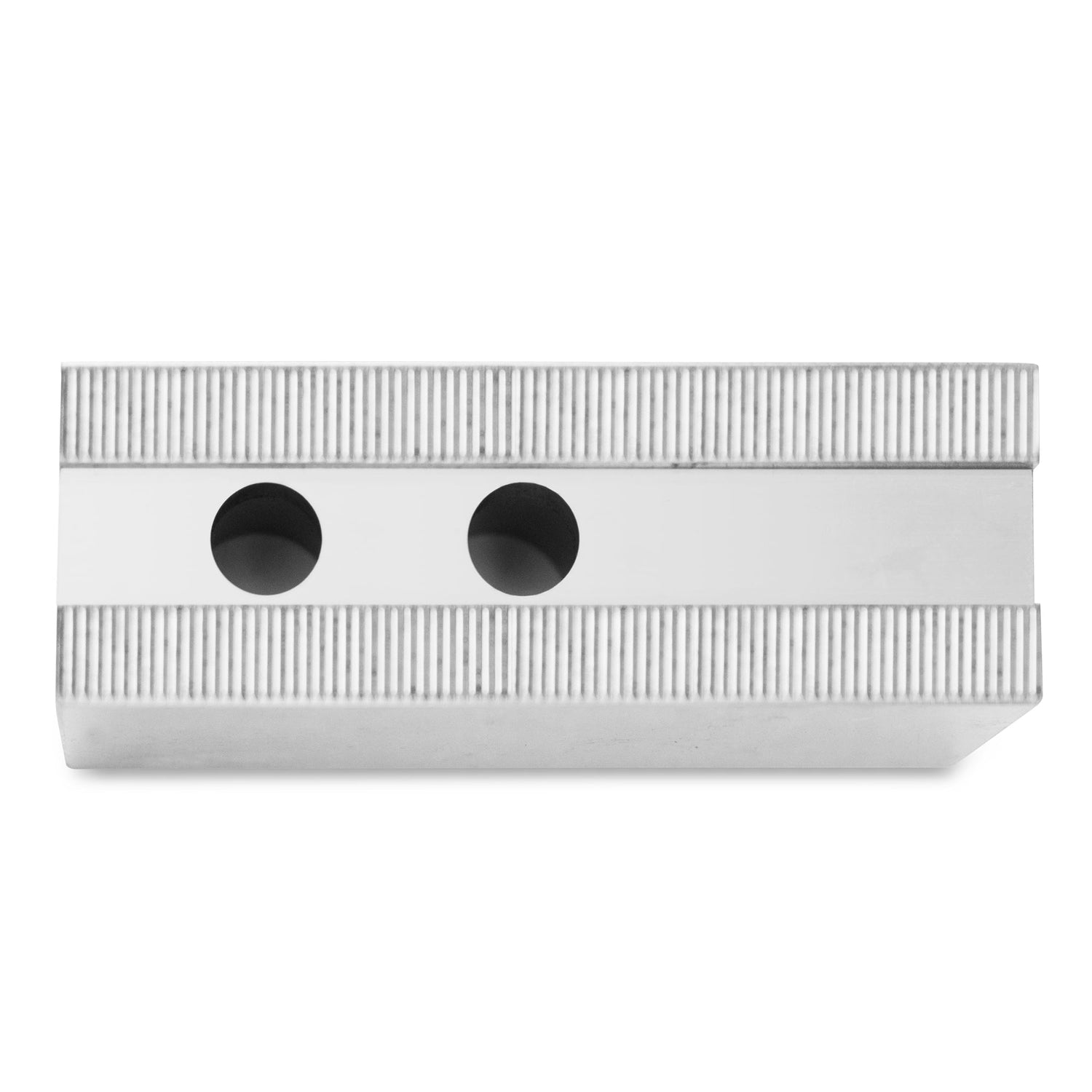

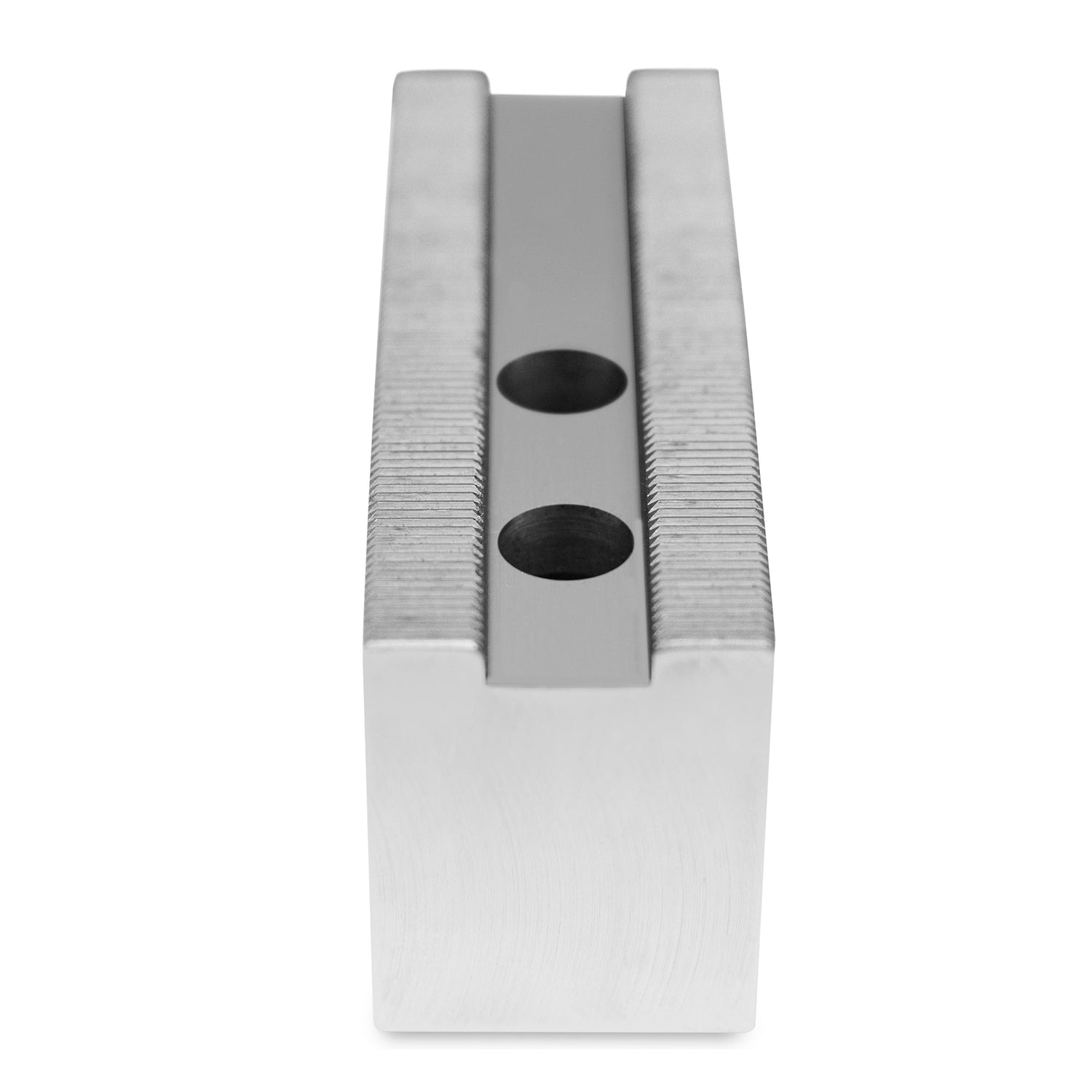

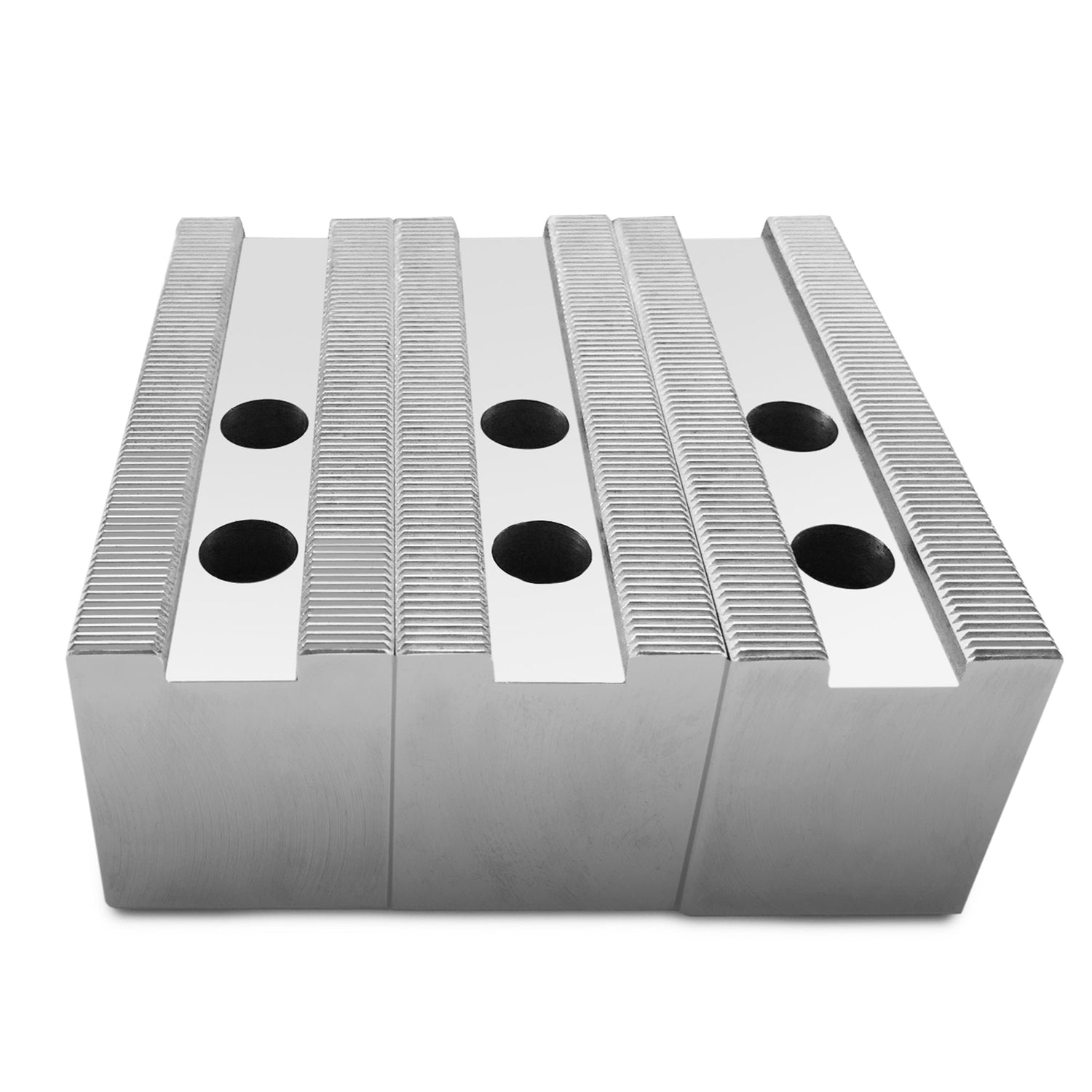

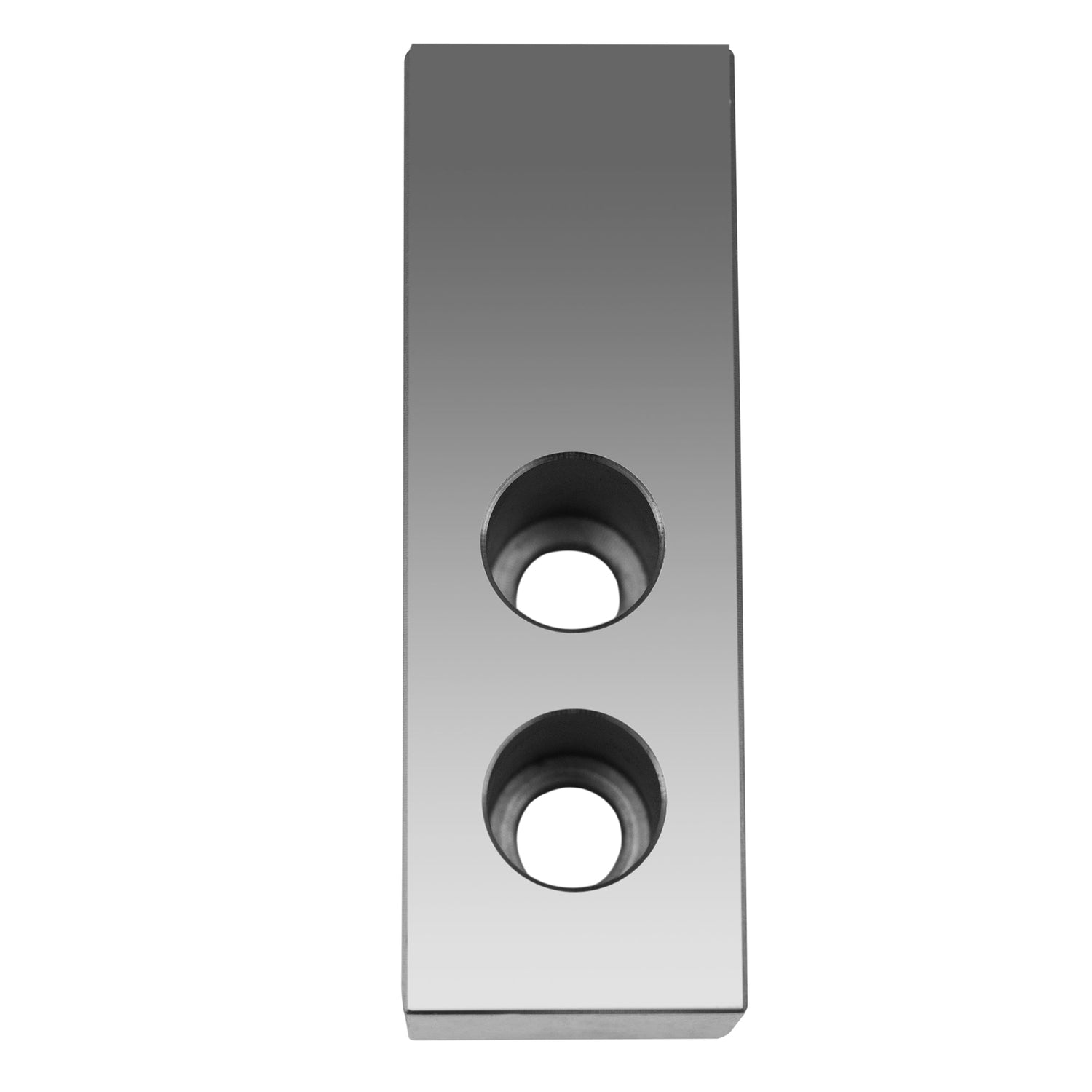

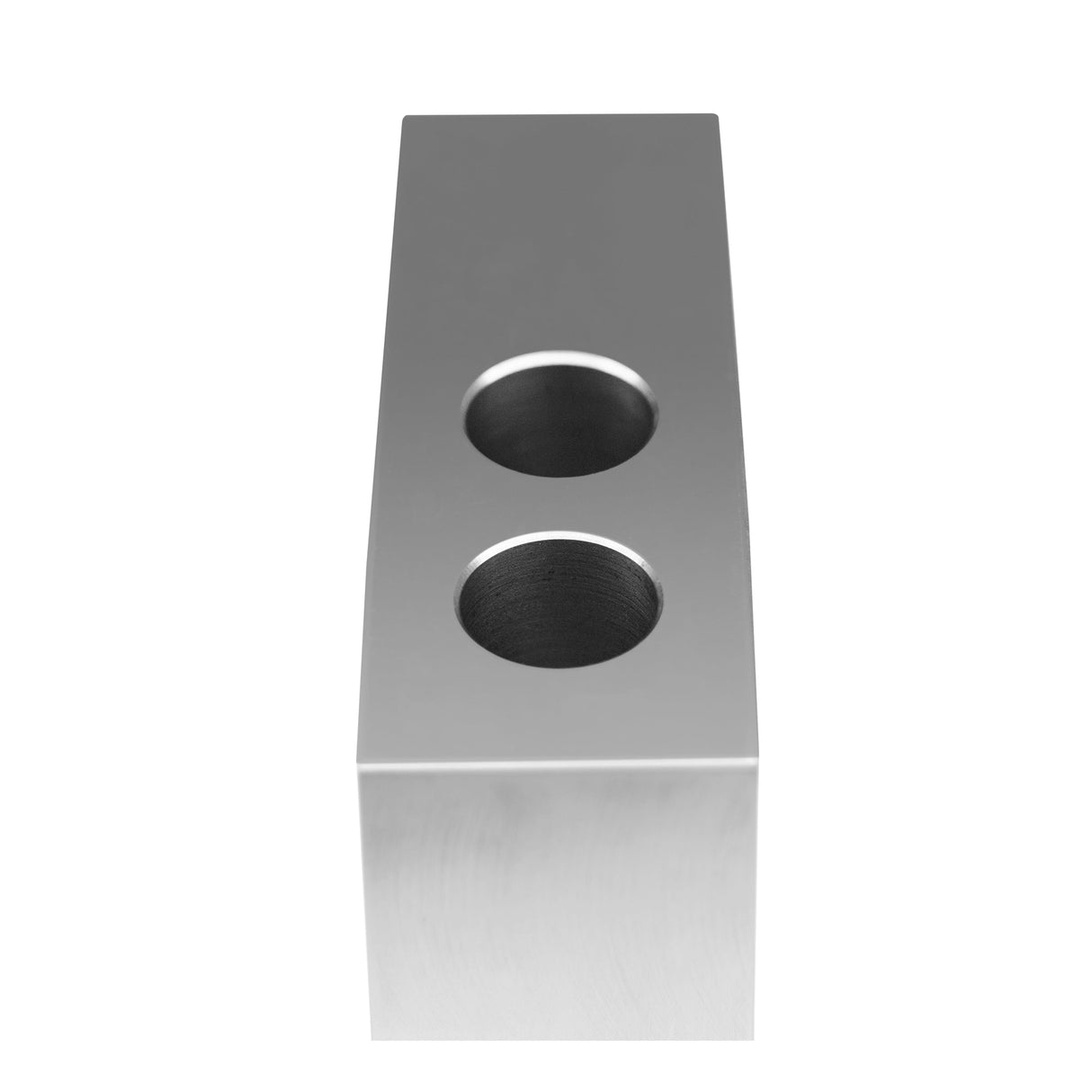

K-12C-5.8-SF - 12" Chuck Soft Jaws Set (3 Pcs), Steel, Flat, 5" Height, 0.827" Groove/Slot Width - For 12" (B-212) Kitagawa/Samchully Power Lathe Chucks
K-12C-5.8-SF - 12" Chuck Soft Jaws Set (3 Pcs), Steel, Flat, 5" Height, 0.827" Groove/Slot Width - For 12" (B-212) Kitagawa/Samchully Power Lathe Chucks is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping and Delivery
Shipping and Delivery
Free shipping to the 48 continental United States on all products. Outside the USA, please see shopping cart for shipping rates.
Order by 12:00pm EST for same day shipment on most products.
Free returns for 30 days
Free returns for 30 days
No questions asked - shop with confidence!
Quality Manufacturing
All Turner Workholding products are proudly made in an ISO-9001 certified plant.
Description
Description

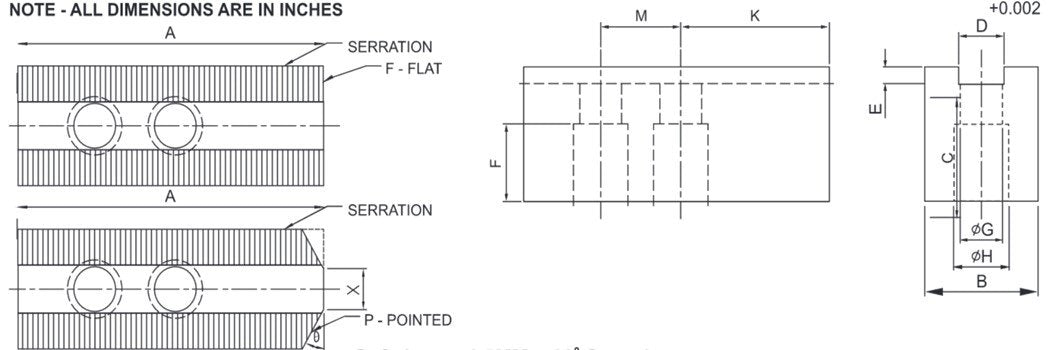

- Part - K-12C-5.8-SF
- Chuck Size- 12" (B-212)
- Chuck Type- Kitagawa (B-212), Samchully, Howa, Matsumoto, Sugo, Nikko
- Chuck Dia - 12"
- Bolt Size -16 MM
- Length A - 5.500"
- Width B - 2.000"
- Height C - 5.000"
- Groove Width D - 0.827" (21 mm)
- Groove Depth E - 0.196"
- Counter Hole Depth F - 4.375"
- Small Hole Ø G - 0.590"
- Big Hole Ø H - 0.905"
- Hole to Front K - 3.125"
- Center to Centre M - 1.181"
-
Manufactured in an ISO-9001 Certified Plant
