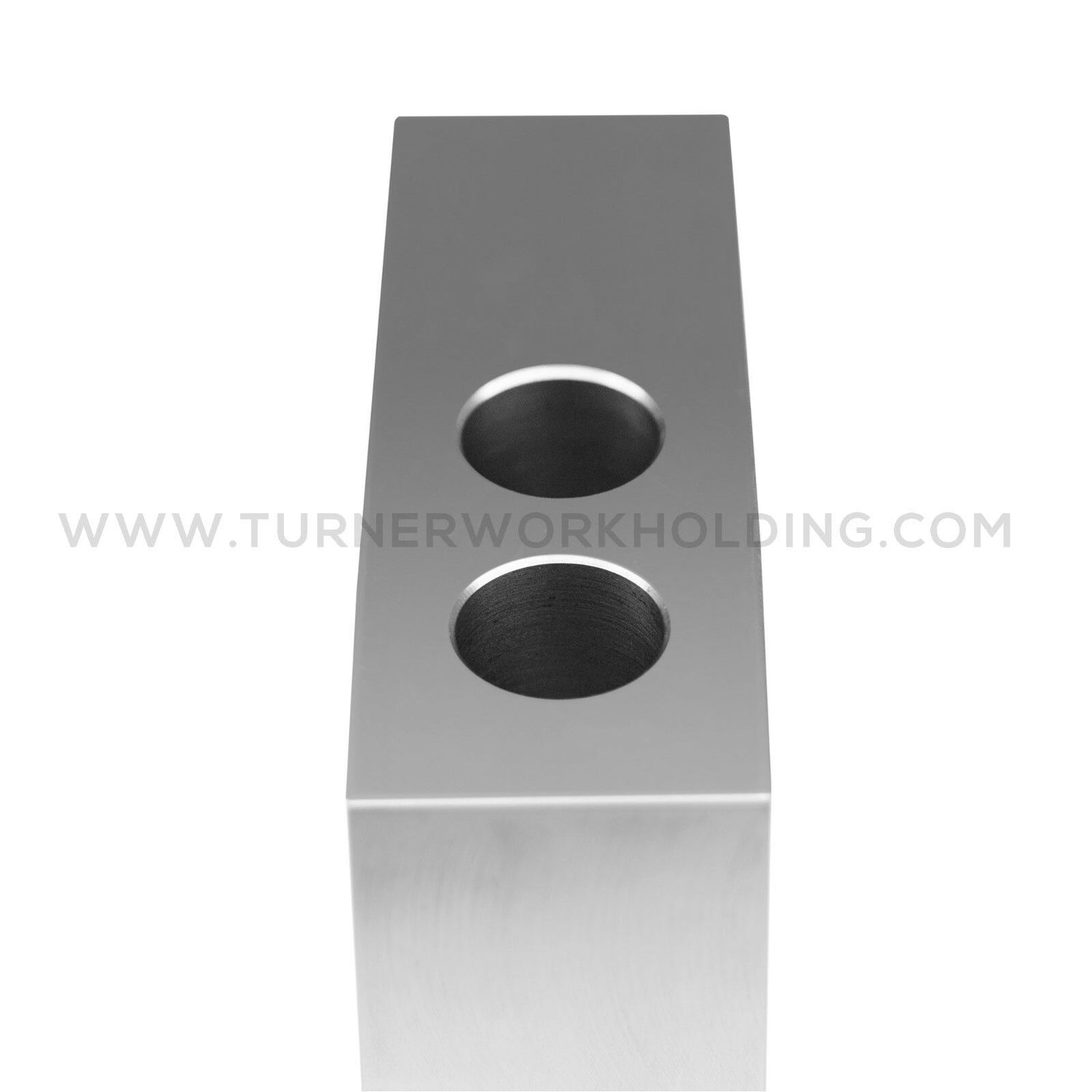

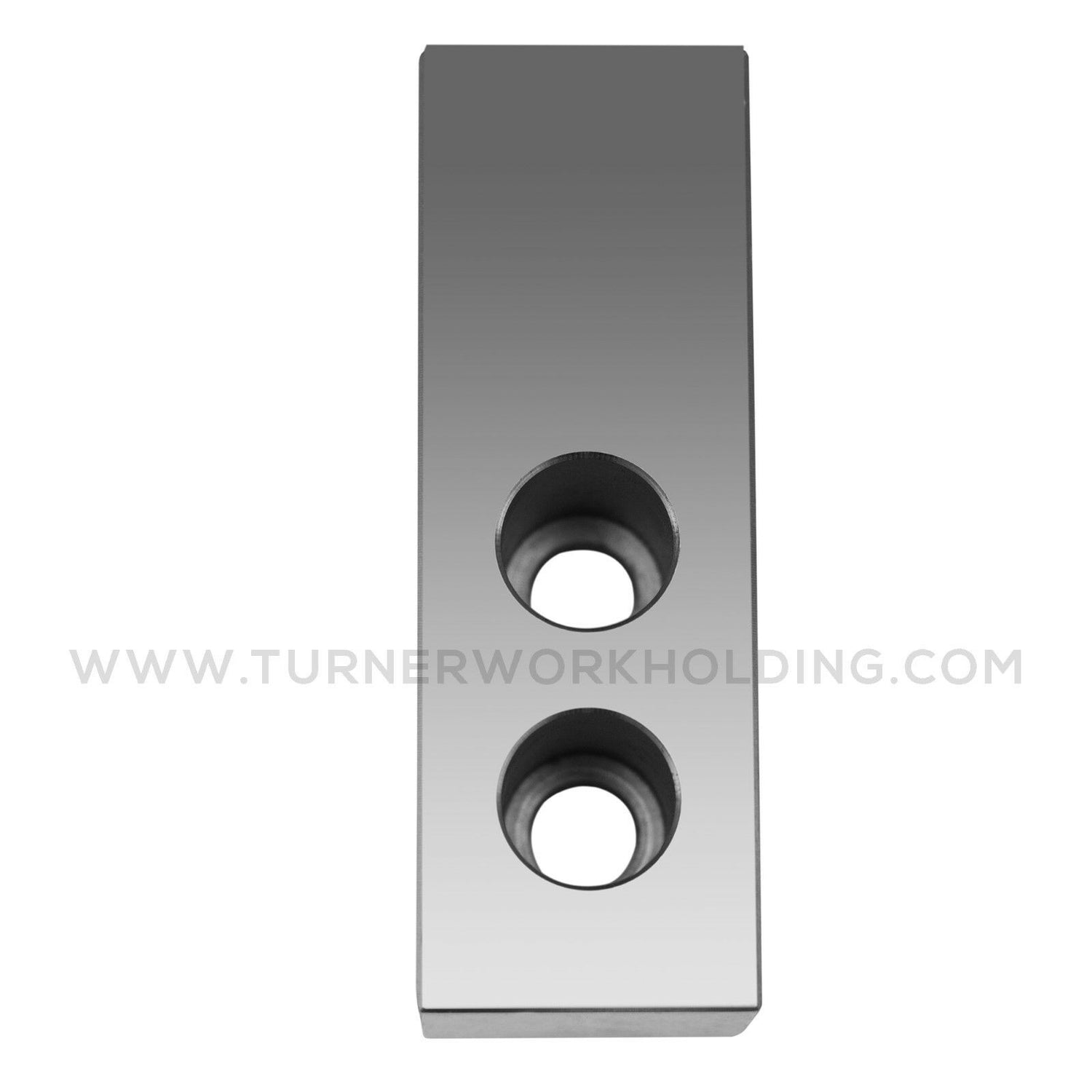

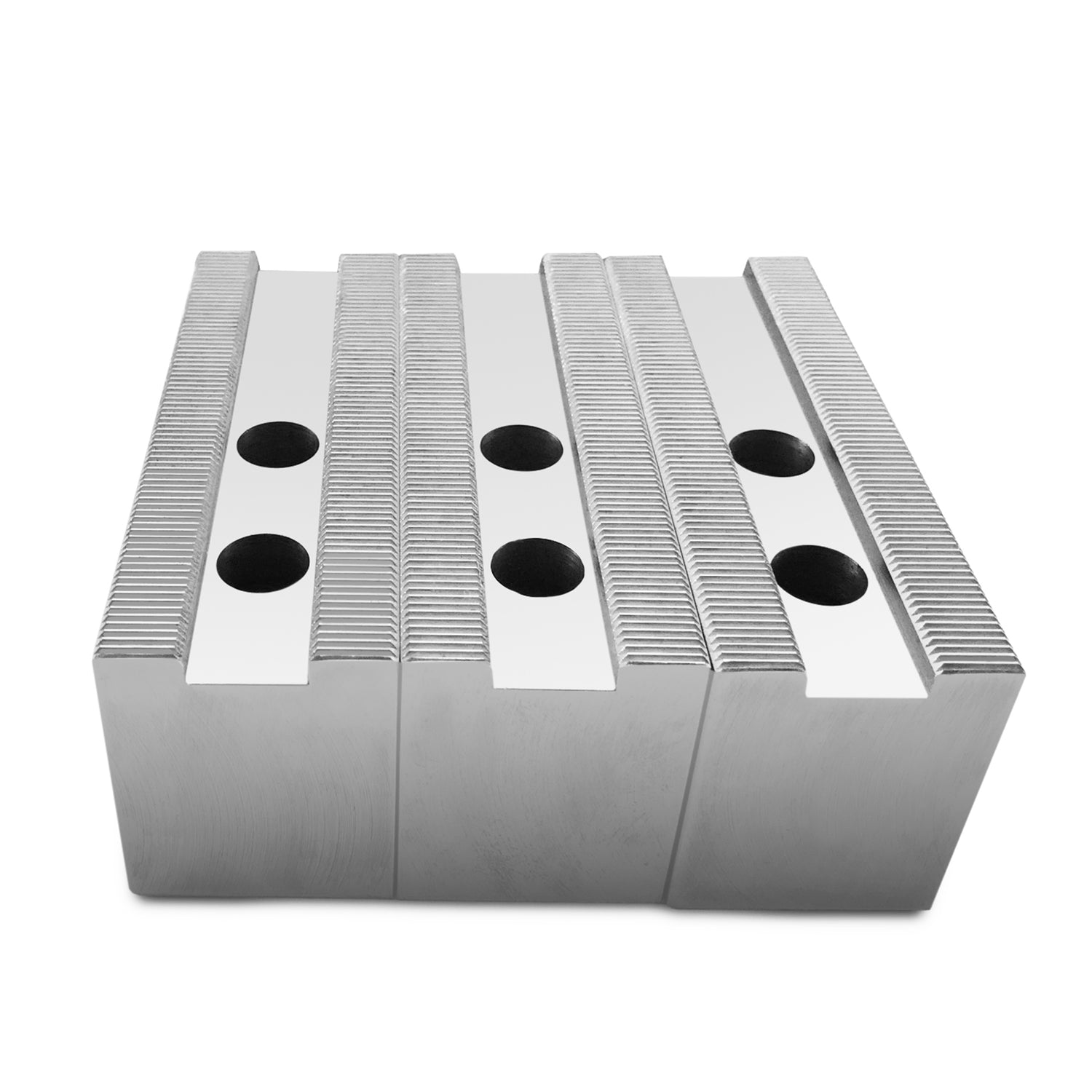

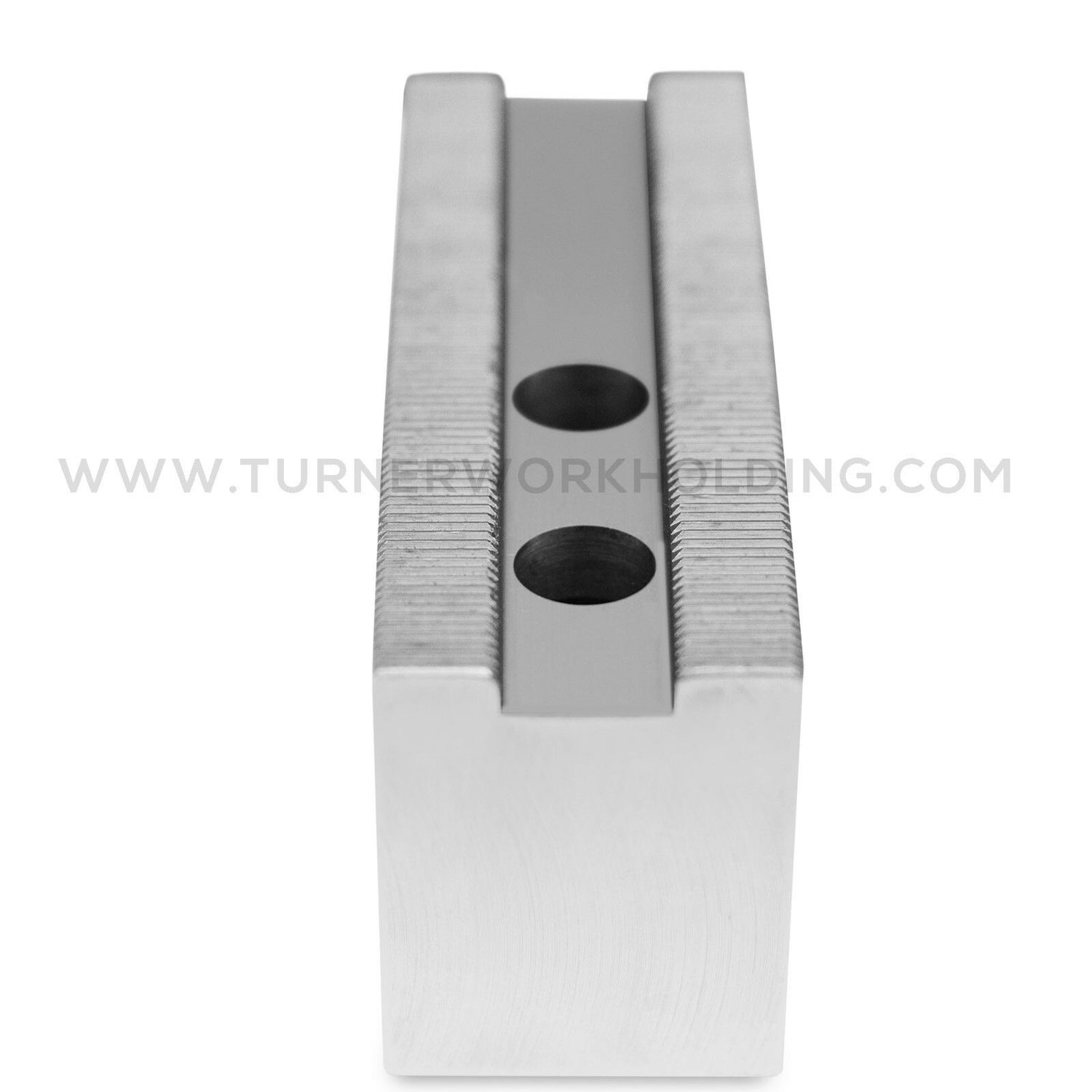

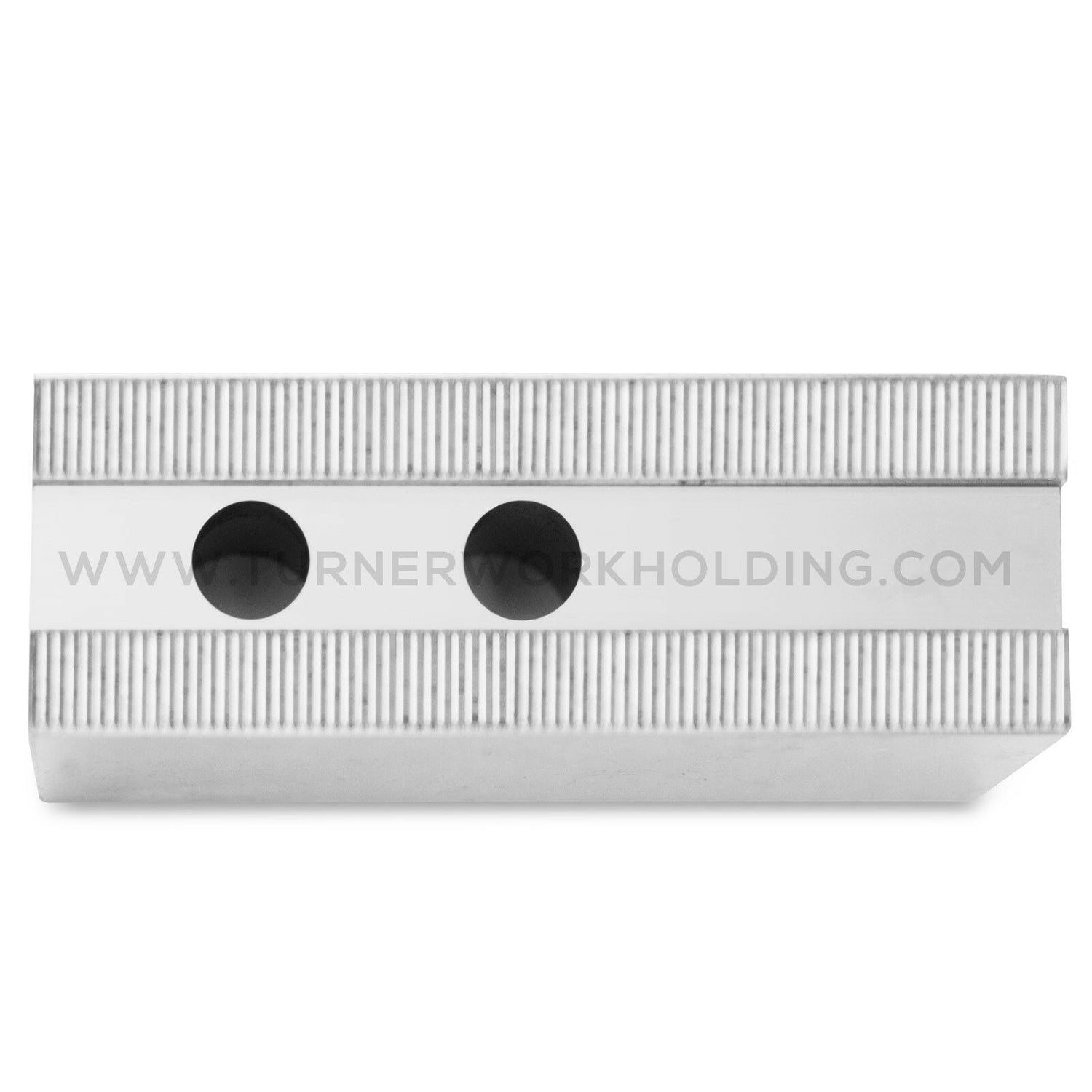

K-6C-1.5-SF - Turner Steel Soft Jaws For a 6" Chuck (Kitagawa, Samchully) ht=1.5" - 3pc set
K-6C-1.5-SF - Turner Steel Soft Jaws For a 6" Chuck (Kitagawa, Samchully) ht=1.5" - 3pc set is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping and Delivery
Shipping and Delivery
Free shipping to the 48 continental United States on all products. Outside the USA, please see shopping cart for shipping rates.
Order by 12:00pm EST for same day shipment on most products.
Free returns for 30 days
Free returns for 30 days
No questions asked - shop with confidence!
K-6C-1.5-SF - Turner Steel Soft Jaws For a 6" Chuck (Kitagawa,...
Quality Manufacturing
All Turner Workholding products are proudly made in an ISO-9001 certified plant.
Description
Description
K-6C-1.5-SF
Precision Quality Jaws with 30 days return policy- No Questions Asked!

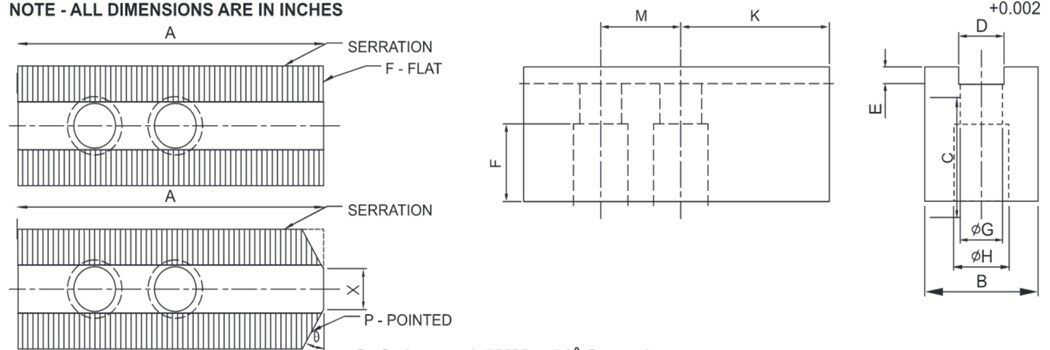

Please see images for Dimensions Template.
Material- Steel
Type - Flat
Chuck Size- 6" (B206)
Chuck Type- Kitagawa, Samchully, Howa, Matsumoto, Sugo, Nikko
Serration - 1.5mm x 60
|
Chuck Dia Inch |
6" |
|
|
Bolt Size |
10MM |
|
|
Length |
A |
3.000 |
|
Width |
B |
1.250 |
|
Height |
C |
1.500 |
|
Groove Width |
D |
0.472 |
|
Groove Depth |
E |
0.196 |
|
Counter Hole Depth |
F |
1.000 |
|
Small Hole Ø |
G |
0.433 |
|
Big Hole Ø |
H |
0.669 |
|
Hole to Front |
K |
1.625 |
|
Center to Centre |
M |
0.787 |
